PureNSM was founded in 1993 specifically to encapsulate supplements without excipients such as magnesium stearate and other chemicals. We are the pioneers in pure manufacturing.

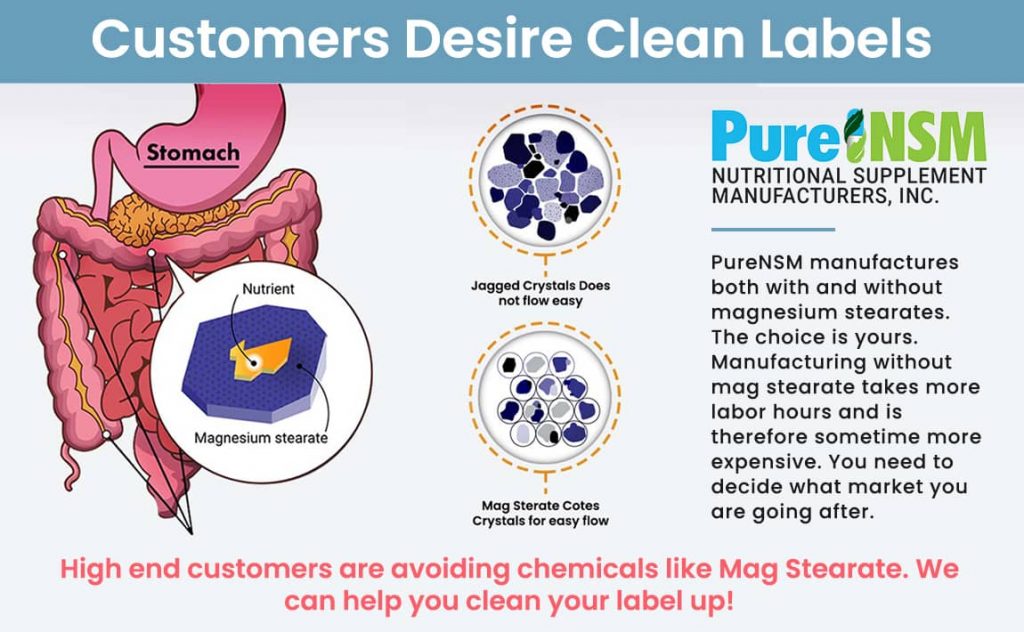

PureNSM manufactures both with and without magnesium stearates. The choice is yours. Manufacturing without mag stearate takes more labor hours and is therefore sometime more expensive. You need to decide what market you are going offer.
High end customers are avoiding chemicals like Mag Stearate. We can help you clean your label up!
The following size tooling is available for our automatic encapsulation machines.
Representative | Capsule Size | Typical fill weight (mg) Actual fill weights may vary and Depend On powder characteristics |
Volume Theoretical | Locked length | External diameter | Cut length | Single wall thickness | Weight Avg. of 100 | |||
---|---|---|---|---|---|---|---|---|---|---|---|
Approximate Capsule size | From largest To smallest | Powder density | (ml) | +/- 0.76 (mm) | Tolerance | (mm) | +/- 0.51 (mm) | +/- 0.03 (mm) | +/- 10% (mg) | ||
0.45 (Light) | 0.70 (Typical) | 1.00 (Heavy) | Component | ||||||||
![]() |
000 | 615 | 960 | 1370 | 1.37 | 26.14 | Cap | 9.91 | 12.95 | 0.112 | 163 |
Body | 9.55 | 22.20 | 0.110 | ||||||||
![]() |
00 | 430 | 665 | 950 | 0.95 | 23.30 | Cap | 8.53 | 11.74 | 0.109 | 118 |
Body | 8.18 | 20.22 | 0.107 | ||||||||
![]() |
0 | 305 | 475 | 680 | 0.68 | 21.70 | Cap | 7.65 | 10.72 | 0.107 | 96 |
Body | 7.34 | 18.44 | 0.104 | ||||||||
![]() |
1 | 225 | 350 | 500 | 0.50 | 19.40 | Cap | 6.91 | 9.78 | 0.104 | 76 |
Body | 6.63 | 16.61 | 0.102 | ||||||||
![]() |
2 | 165 | 260 | 370 | 0.37 | 18.00 | Cap | 6.35 | 8.94 | 0.102 | 61 |
Body | 6.07 | 15.27 | 0.099 | ||||||||
![]() |
3 | 135 | 210 | 300 | 0.30 | 15.90 | Cap | 5.82 | 8.08 | 0.092 | 48 |
Body | 5.56 | 13.59 | 0.890 | ||||||||
![]() |
4 | 95 | 145 | 210 | 0.21 | 14.30 | Cap | 5.31 | 7.21 | 0.096 | 38 |
Body | 5.05 | 12.19 | 0.091 |

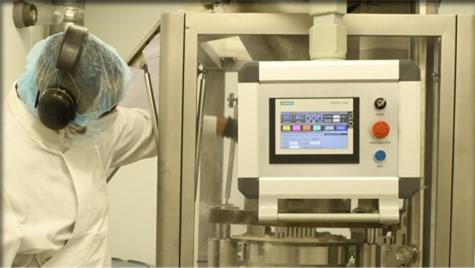

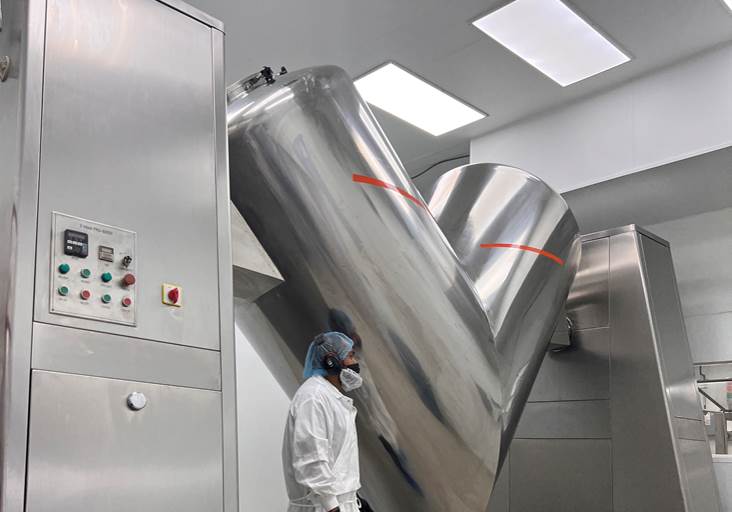

PureNSM operates 9 encapsulation machines, many of them quite large fit for production runs of 5 million to 30 million capsules or more. We operate a blender capable of blending 1000kg per blend.
